| MODEL modello | PICTURE immagine | MATERIALS materiali | FLOW RATE portata | SUCTION LIFT aspirazione | DISCHARGE PRESSURE prevalenza | SOLIDS SIZE passaggio solidi | CONNECTIONS connessioni |
|---|---|---|---|---|---|---|---|
| AMP 4 |  | PP PVDF POMc | 4 lpm | 3 mwc | 6 bar | 2 mm | 1/4" |

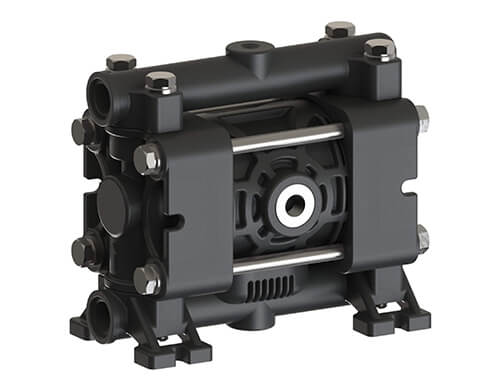

| AMP 8 |  | PP PVDF POMc | 8 lpm | 3 mwc | 6 bar | 2 mm | 1/4" |

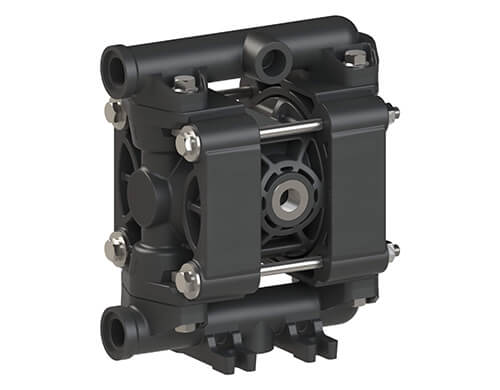

| AMP 20 |  | PP PVDF POMc 316 S.S. | 20 lpm | 5 mwc | 7 bar | 2.5 mm | 3/8" |

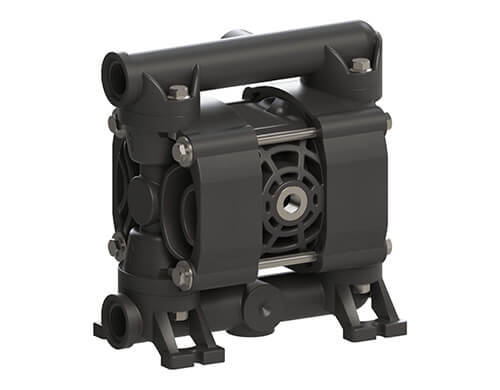

| AMP 35 |  | PP PVDF ALUMINUM 316 S.S. | 35 lpm | 5 mwc | 7 bar | 3 mm | 1/2" |

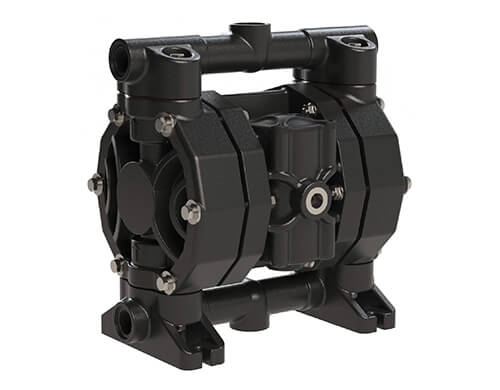

| AMP 60 |  | PP PVDF ALUMINUM 316 S.S. | 65 lpm | 5 mwc | 8 bar | 3.5 mm | 1/2" |

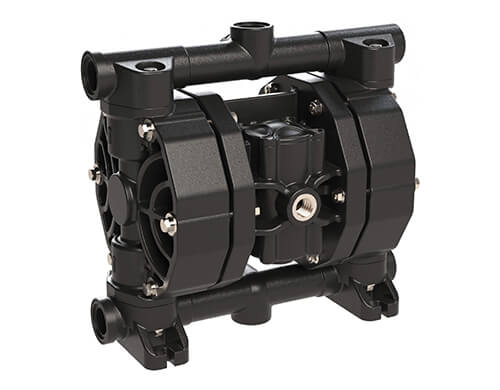

| AMP 90 |  | PP PVDF ALUMINUM 316 S.S. | 100 lpm | 5 mwc | 8 bar | 4 mm | 3/4" |

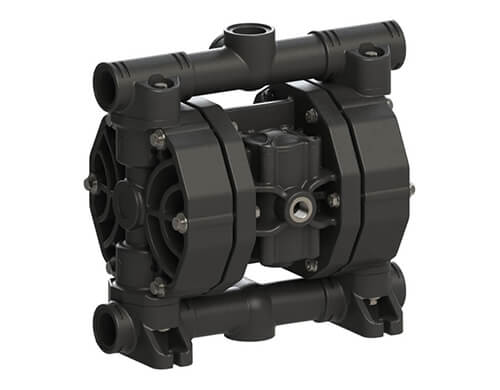

| AMP 120 |  | PP PVDF ALUMINUM 316 S.S. | 120 lpm | 5 mwc | 8 bar | 4 mm | 1" |

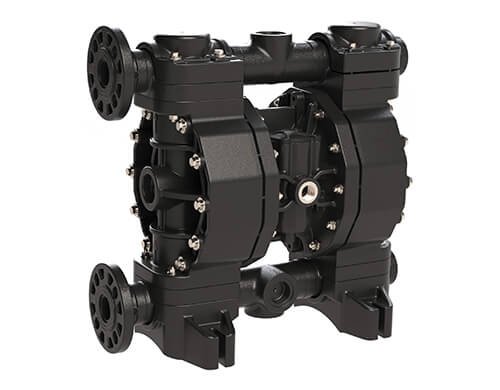

| AMP 170 |  | PP PVDF ALUMINUM 316 S.S. | 170 lpm | 5 mwc | 8 bar | 7.5 mm | 1" |

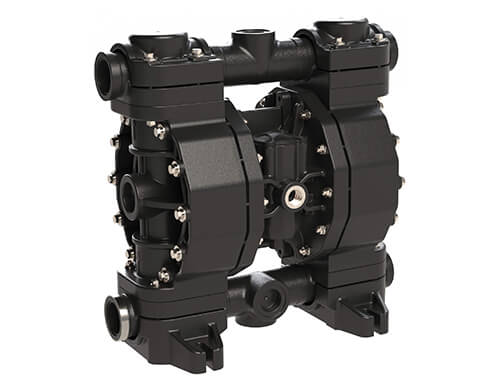

| AMP 252 |  | PP PVDF ALUMINUM 316 S.S. | 250 lpm | 5 mwc | 8 bar | 7.5 mm | 1-1/4" |
| AMP 400 |  | PP PVDF ALUMINUM 316 S.S. | 380 lpm | 5 mwc | 8 bar | 8 mm | 1-1/2" |

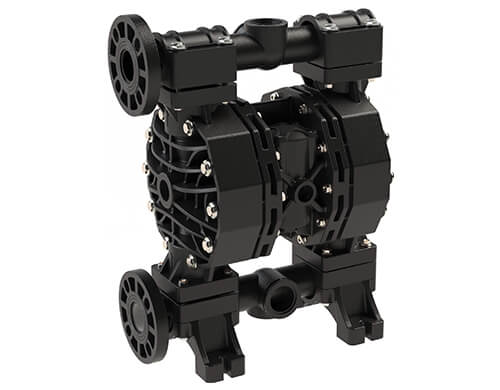

| AMP 700 |  | PP PVDF ALUMINUM 316 S.S. | 700 lpm | 5 mwc | 8 bar | 8.5 mm | 2" |

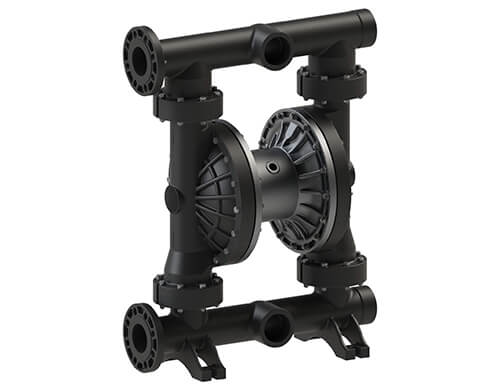

| AMP 1000 |  | PP PVDF ALUMINUM 316 S.S. | 1050 lpm | 5 mwc | 8 bar | 12 mm | 3" |
Contact us indicating the material to transfer. We will send you a quote for the most efficient model for your use.
